Spring core mesh

[0001]FIG. 1 is a front elevation view of a spring core mesh showing the new design;

[0002]FIG. 2 is a rear elevation view thereof;

[0003]FIG. 3 is a left side elevation view thereof;

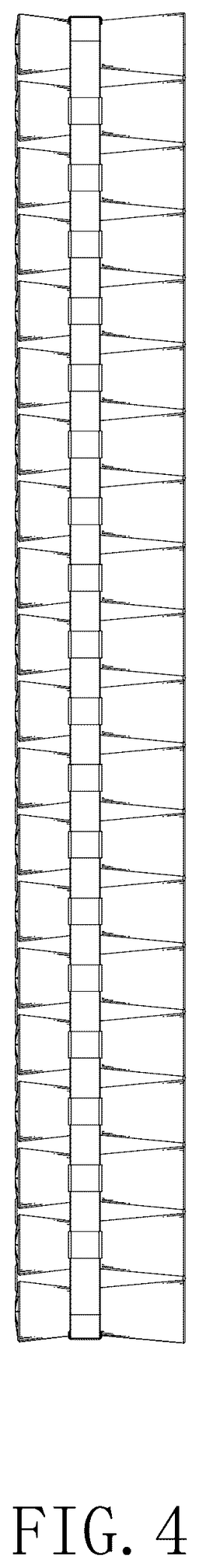

[0004]FIG. 4 is a right side elevation view thereof;

[0005]FIG. 5 is a top plan view thereof;

[0006]FIG. 6 is a bottom plan view thereof;

[0007]FIG. 7 is a perspective view thereof showing the front side;

[0008]FIG. 8 is a second perspective view thereof showing the rear side; and,

[0009]FIG. 9 is an enlarged view taken from the encircled area 9 shown in FIG. 7.

[0010]The broken line shown in the drawings is for the purposes of illustrating an area of enlargement and forms no part of the claimed design.
