Inventors
Jordan Addison, Amy Bui, Alex Palmer, Ryan Striedel, Luke Winterstein
Description
[0001]FIG. 1 is a right side perspective view of a bone biopsy system with an end effector, a coupler, and a powered drive source;
[0002]FIG. 2 is a right side perspective view of the bone biopsy system of FIG. 1 with the coupler and the powered drive source;
[0003]FIG. 3 is a right side elevation view of the biopsy system of FIG. 1;
[0004]FIG. 4 is a right side elevation view of the biopsy system of FIG. 2;
[0005]FIG. 5 is a left side elevation view of the biopsy system of FIG. 1;
[0006]FIG. 6 is a left side elevation view of the biopsy system of FIG. 2;
[0007]FIG. 7 is a top plan view of the biopsy system of FIG. 1;
[0008]FIG. 8 is a top plan view of the biopsy system of FIG. 2;
[0009]FIG. 9 is a front view of the biopsy system of FIG. 1;
[0010]FIG. 10 is a front view of the biopsy system of FIG. 2;
[0011]FIG. 11 is a rear view of the biopsy system of FIG. 1;

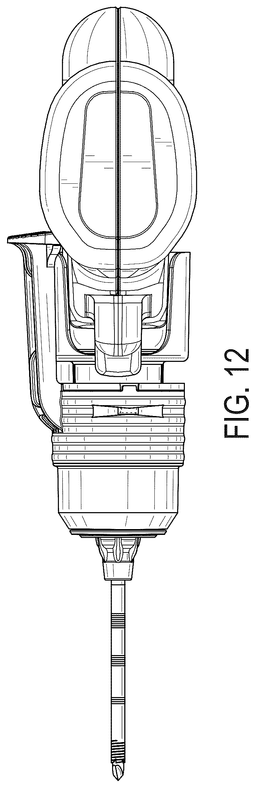

[0012]FIG. 12 is a bottom plan view of the biopsy system of FIG. 1;
[0013]FIG. 13 is a bottom plan view of the biopsy system of FIG. 2;
[0014]FIG. 14 is a right side perspective view of the biopsy system of FIG. 1 with the end effector spaced apart from the coupler and the powered drive source and the coupler in an intermediate engagement position with respect to the powered drive source;
[0015]FIG. 15 is a right side perspective view of the biopsy system of FIG. 1 with the end effector spaced apart from the coupler and the powered drive source and the coupler in a forward release position with respect to the powered drive source;
[0016]FIG. 16 is a right side perspective view of the biopsy system of FIG. 1 with the end effector spaced apart from the coupler and the powered drive source and the coupler in a rear release position with respect to the powered drive source;
[0017]FIG. 17 is a right side perspective view of the biopsy system of FIG. 1 with the end effector spaced apart from the coupler and the powered drive source, the coupler in an intermediate engagement position with respect to the powered drive source, and a rotatable release arm of the coupler rotated to the left side;
[0018]FIG. 18 is a right side elevation view of the biopsy system of FIG. 15;
[0019]FIG. 19 is a right side elevation view of the biopsy system of FIG. 16;
[0020]FIG. 20 is a right side elevation view of the biopsy system of FIG. 17;
[0021]FIG. 21 is a left side elevation view of the biopsy system of FIG. 15;
[0022]FIG. 22 is a left side elevation view of the biopsy system of FIG. 16; and,
[0023]FIG. 23 is a left side elevation view of the biopsy system of FIG. 17.
[0024]The portions of the device for bone biopsy shown in broken lines depict environmental subject matter only and form no part of the claimed design.
